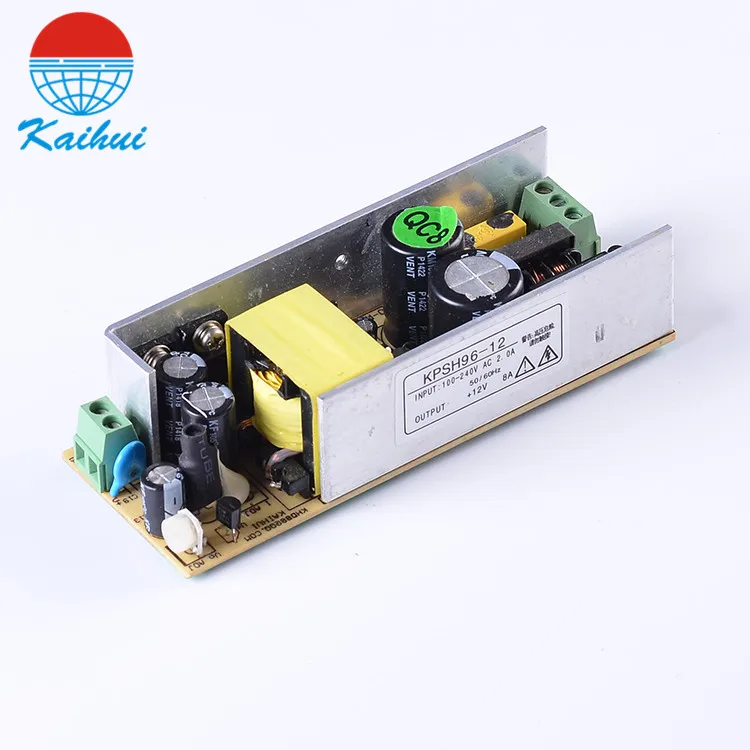

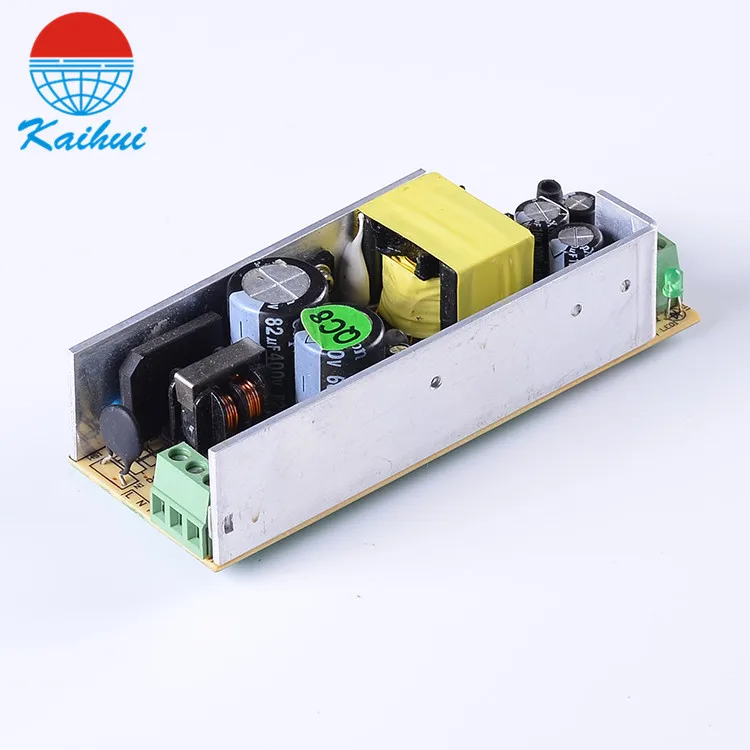

Factory Direct Supply 96 watt 12 volt dc led power supply

FOB Reference Price:Get Latest Price
$4.00 - $13.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
KAIHUI
Model Number:
KPSh96-12
Output Power:
84w
Output Type:
Single, Single
Input Voltage:
88~264VAC
Output Voltage:
+12V
Output Frequency:
50~60Hz
Output Current:
7A, 7A
Size:
117*44*30mm
Weight:
0.15kg
Protections:
Short circuit/ Over load
output Voltage:
12v
Safety standards:
MeetGB4943
Warranty:
2 years
input voltage:
110v
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
export standard package
Port
Shenzhen Huangpu Guangzhou Port

Factory Direct Supply 96 watt 12 volt dc led power supply

Product Description

Features:

1,With wide application,they had been used in LED lighting,ACS,medical and beauty device,electrical power system,communication system,military industry and others.

2,Some models achieved GS,CE,CCC,ETL,ISO,ROHS certification now.

3,There are more than 1,000 kinds of models.



1, Wide range ofAC input voltage;

2,short circuit, overload protection;

3,Other output voltage also can be made,such as18V,21V,42V etc.



 parameter           Item No.

KPSH96-12

KPSH96-24

KPSH96-36

KPSH96-48





OUTPUT















DC Output Voltage

+12V+24V

+36V

+48V

Output Rated Current

7A 4A 2.7A2A

Output Current Range

  0-7A 0-4A 0- 2.7A0-2A

Rated power

84W 96W 97.2W96W

Ripple

100mVp-p 100mVp-p  200mVp-p200mVp-p

ADJ.Voltage range

10.8~13.2V21.6~26.4V32.4~39.6V43.2~52.8V

OutputAccuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up,Rise,Hold up time

500ms,50ms,20ms



INPUT















Input Voltage range

90-264VAC

Input current

0.3A@ 220VAC

Input frequency

47-63 Hz

Efficiency

>85%

>87%

>88%

>88%

Inrush currentCold start 15A/115V,30A/230V
Leakage Current<0.3mA@240VAC
POWER FACTOR>0.95 @ 115V;>0.9 @ 230V

Over Temp.protection

Over load protection110~200%,Hiccup,automatic recovery
Over voltage ----
OVER TEMP. PROTECTION ----

ENVIRONMENT





Working Temp.,Humidity

-20~50℃,10~90% RH,non-condensing

Storage Temp.,Humidity

-20~85℃,10~95% RH.

Temp.Coefficeent

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACHAXES



SAFETY&EMC





Safety standards

GB4943

Pressure

I/P-O/P :1.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG:500VDC / 100M Ohms

EMC standards





OTHER





Demension

117*44*32mm

Weight

0.15Kg

Note:   1. All parameters 220V AC input, rated load, ambient temperature 25 ℃, measured under conditions of 70%
humidity;
2.Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u
capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output from 0% to 100% load change load measured.


Related Products





Company Information



Packaging & Shipping











































 Payment&Shipping

Payment
We accept T/T, L/C,or Western Union,if you have any
problems about payment,please contact us

Shipping
15-20 days after sample approval and deposit received.
Tracking No. will be sent to you after delivery and you
will get every important shipping status by email

FAQ

Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2: Do you accept OEM/ODM for the switching power supply  ?

A2: Yes. we do.



Q3:How about the quality?

A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%



Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)

Real Power= Input Voltage x Input Current x Power Factor (W)
